DSP F28335 控制用软件平台套装

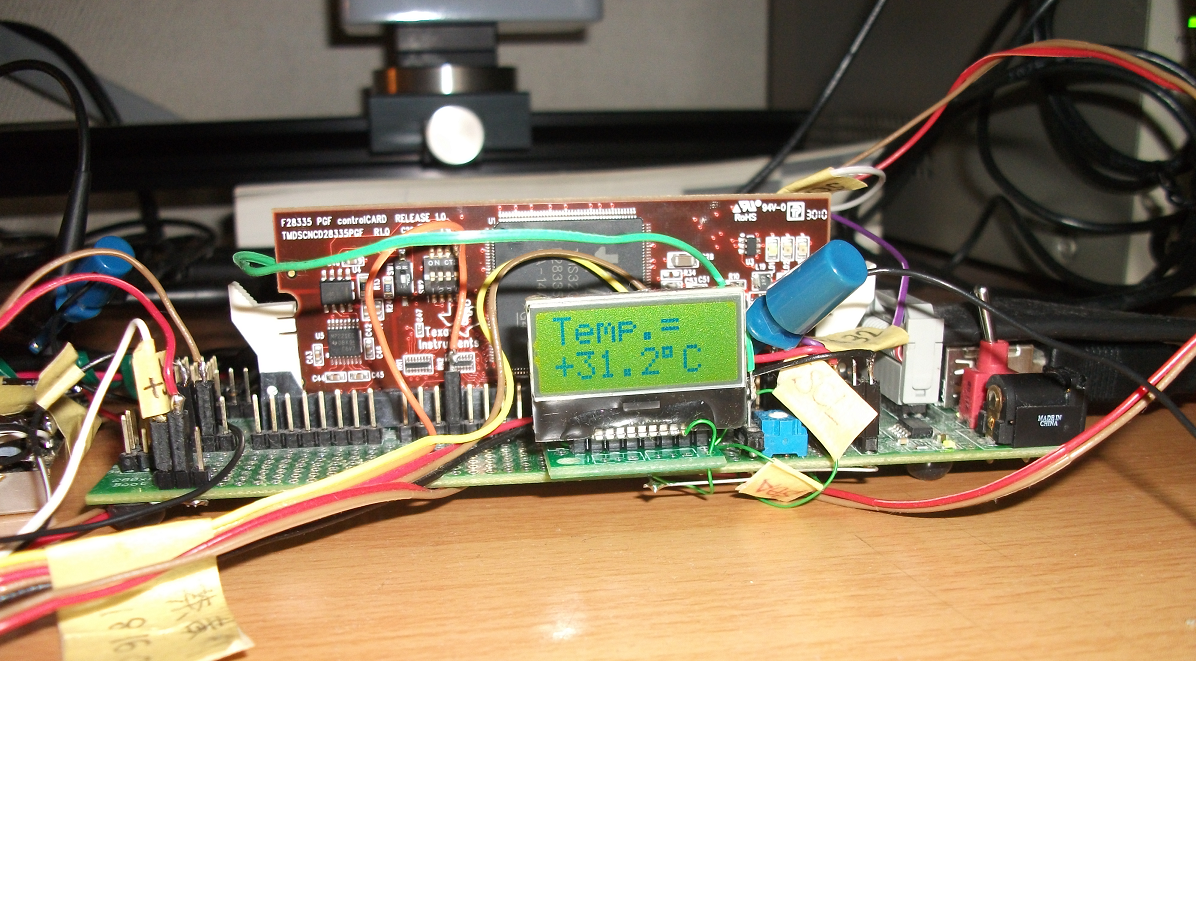

DSP(TMS320F28335)控制用软件平台套件。采用本产品可使用户的DSP控制软件开发大大简化，提高开发效率。 特徴 ; DSP/TMS320F28335の高速控制用软件平台套ト C语言源码程序套件。nonBIOS環境。 実装DSP周边配套固件 ; Internal ADC, I2C, SPI, DMA, UART, Timer 外部電子元件接口; SPI-DAC, I2C-EEPROM, I2C-LCD, UART-PC serial communication 附带电子反馈控制的样品程序 ; 采用了珀耳帖元件和热敏元件的电子PID控制（自动温度控制） 控制平台的软件流程图 状态迁移图 ; 请参考如下资料： The brochure of the DSP F28335 Basic Control Platform(PDF) 价格和支付方式； 邮件垂询后我们书面报价，合同支付通过银行汇款方式。 商品下载 (实购客户) ; TestDownloadFile.lzh

光二极管用对数放大器　基板 ; OELOGAMP8304

我们提供光二极管的光电流进行对数变换后可以电压数据输出的电子电路基板。 特徴 ; 光二极管光的电流范围广，可以从 100pA 到 10mA 最适合做接光纤的光二极管的信号监视 对数变换后的电压数据输出 光二极管可实装4个 孔的尺寸 80mm×90mm 信号帯宽　最大10MHz 价格及支付； 邮件垂询后我们书面报价，合同支付通过银行汇款方式。

• Catalog of the PhotoDiode LogAmplifier Boards ; OELOGAMP8304(PDF)
• Manual of the PhotoDiode LogAmplifier Boards ; OELOGAMP8304(PDF)

FBG传感器热销中 Smart FBG

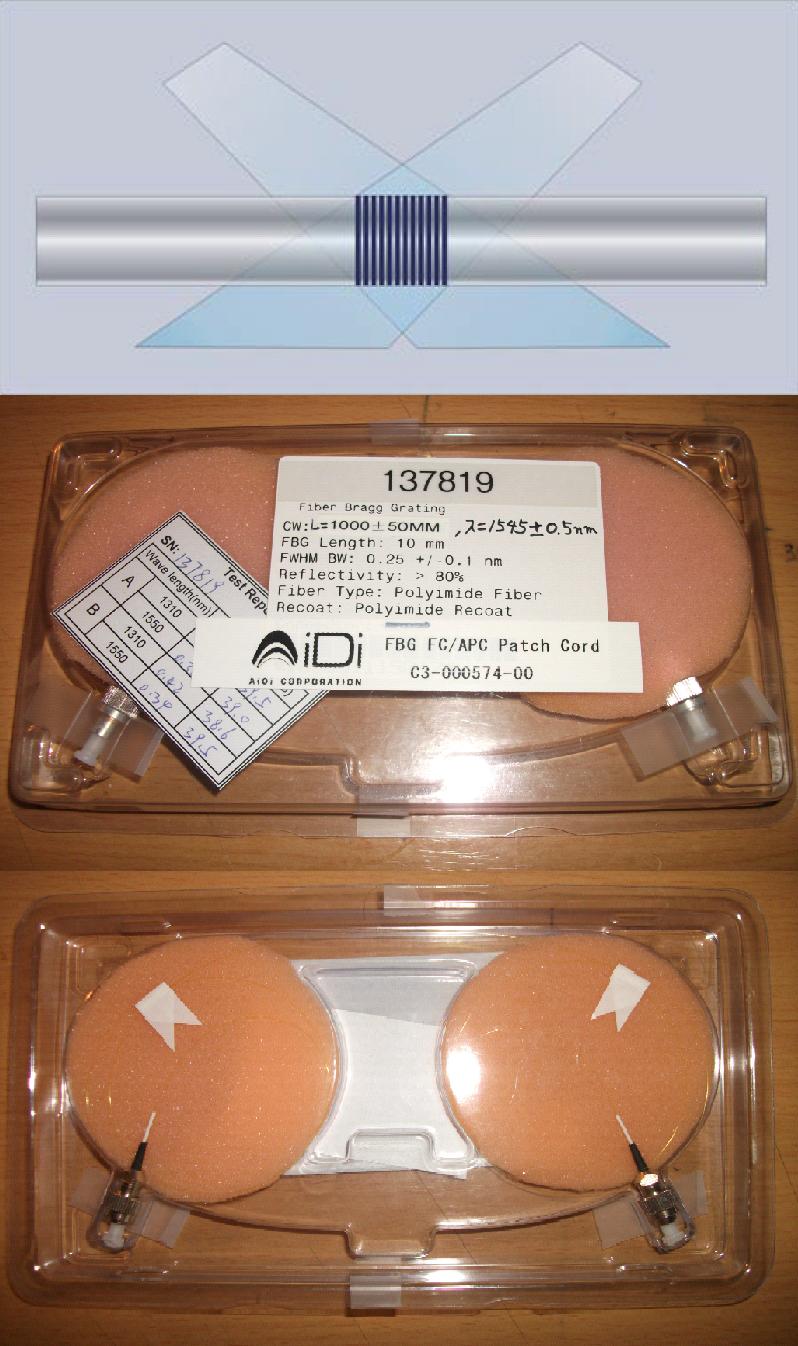

Now on sale! Fiber Bragg Grating(FBG) Sensor(Smart Fibres Ltd./AiDi Corp.). A Fibre Bragg Grating (FBG) is a novel optical sensor recorded within the core of a standard optical fibre. It reflects a narrow bandwidth of light, which responds faithfully to changes in temperature and strain. Many FBG sensors can be recorded onto a single optical fibre and interrogated simultaneously with a single instrument - the effect is a very low cost mechanism for distributed monitoring of strain and/or temperature within large structures, particularly suited to design validation and structural health monitoring Features ; Optical strain and/or temperature sensor Highly stable Multiple km signal integrity Suitable for long-term SHM Can be used to manufacture smart sensors and transducers Available singly or in multiple FBG arrays Characteristics ; Center Wavelength = 1545+/- 0.5nm Fiber Length = 1000 +/- 50mm, FBG Length = 10mm FWHM BW = 0.25 +/- 0.1nm Reflectivity > 80% Strain range = +/- 9000 u-strain Strain resolution = 0.4 u-strain Strain sensitivity = 1.2 pm/u-strain Temperature sensitivity = 11 pm/degC Temperature resolution = 0.05 degC Fibre type ; Single Mode SMF-28, 9/125um Recoat ; Polyimide Connector ; FC/UPC 价格及支付； 邮件垂询后我们书面报价，合同支付通过银行汇款方式。

• Catalog of the Smart FBG(PDF)
• Smart Fibres Ltd.(http://www.smartfibres.com/FBG-sensors)

• FBG尺寸图纸(PDF)

热销中! 数字PID控制解说及计算表　

We sell the "Calculator of digitally controlled PID filter(Excel file)" and its technical document "Introduction to calculating the digitally controlled PID filter(PDF)". Features and key words ; Calculating the design parameter of a digitally controlled PID filter Principle of Digitally controlled PID filter s-z Bilinear Transform Plotting the graph of transfer function for a digitally controlled PID filter Corresponding the application sample code of a digitally controlled PID filter via "DSP F28335 Basic Control Platform C-Programming Code Sets" 热销中! ; 价格　2万円(*1) How to pay ; Please cotact us by e-mail. And please see the following documents. *1 ; 银行汇款费用由客户负担，未包含在上述价格之中！。 How to pay the bills(PDF)

• Introduction to calculating the digitally controlled PID filter(PDF)
• Calculator of Digitally Controled PID Filter(Excel)

热销中! 微沫臭氧发生器 ； D-3N

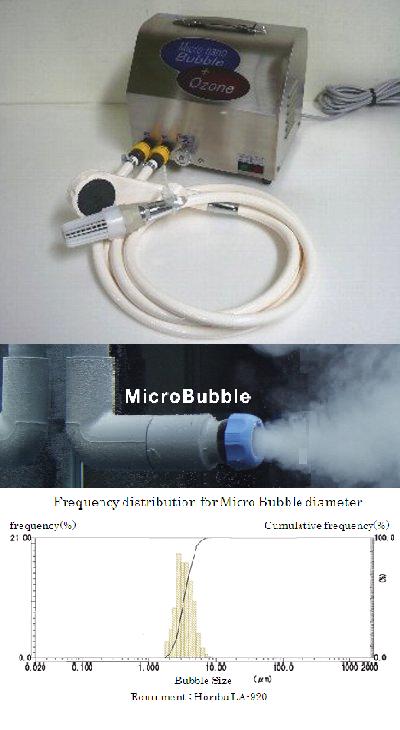

We sell the Micro bubble and Ozone Generator D-3N. Features ; Low Cost Small Size of Desk-Top Advantage of bacteria-killing action, odor eliminating, cleaning Very small bubble size ; 2 to 5um Generation of ozonated water Description ; Micro bubble is very small air particle with a large surface area per unit volume, which provides high performance for bacteria-killing action, odor eliminating, surface cleaning, ionization, osmosis. Our micro bubble and ozone generator is active in various field of such as agriculture, semiconductor industry, medical care, chemical engineering, aquatic products industry, beauty salon business, food industry, nursing care business, bathtub industry, public water quality management, various manufacturing industry. Applications and these fields ; agriculture, semiconductor industry, medical care, chemical engineering, aquatic products industry, beauty salon business, food industry, nursing care business, bathtub industry, public water quality management, various manufacturing industry. Surface cleaning system for a semiconductor wafer Washing machine for food Cleanup-water system as water quality management Chemical reactor equipment Bacteria-killing action system Odor eliminating system Facial massager Bathtub equipment for body care Ionizer equipment 价格及支付； Please cotact us by e-mail about the price. And please see the following documents. How to pay the bills(PDF)

• Catalog of the Micro bubble and Ozone Generator ; D-3N(PDF)
